DESCRIPTION
| Item Name | IDF NUT+LINER+MALE |
| Standard | IDF |
| Size | 1.0"-4.0" |
| Material | SS304/304L/316L |
| Seal | Silicone / EPDM / Viton / NBR / PTFE |
| Connection Type | Weld |
| Surface Finishing | Ra≤0.8μm |

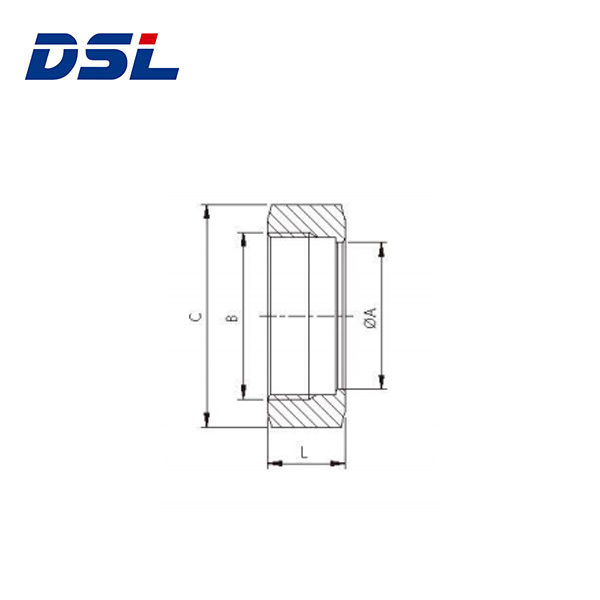

IDF HEX NUT
| SIZE | ΦA | B | C | L |
| 1.0" | 30.5 | 34.49 | 46 | 30 |
| 1.5" | 43.5 | 48.01 | 60 | 30 |
| 2.0" | 57 | 61.52 | 75 | 30 |
| 2.5" | 70.7 | 75.03 | 90 | 30 |
| 3.0" | 83.3 | 88.55 | 105 | 30 |
| 4.0" | 112 | 122.2 | 133 | 34.9 |

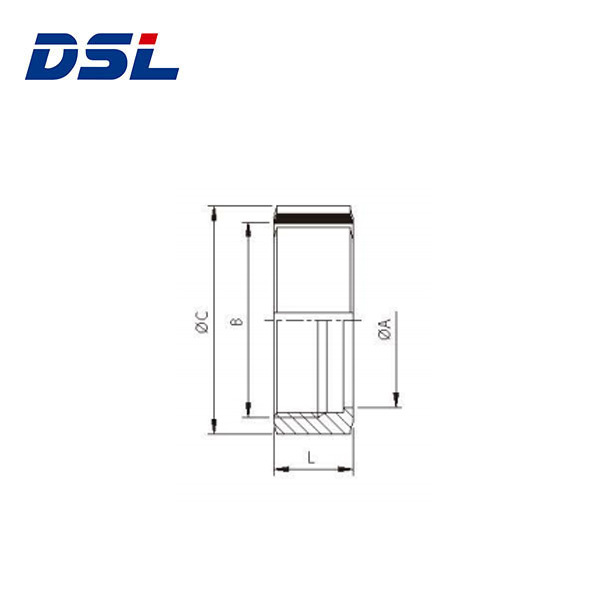

RJT ROUND NUT
| SIZE | ΦA | B | ΦC | L | SLOTS |
| 1.0" | 30.5 | 34.49 | 48 | 30 | 6 |
| 1.5" | 43.5 | 48.01 | 64 | 30 | 6 |
| 2.0" | 57 | 61.52 | 77 | 30 | 6 |
| 2.5" | 70.7 | 75.03 | 91 | 30 | 6 |
| 3" | 83.3 | 88.55 | 106 | 30 | 6 |
| 4" | 110 | 115.56 | 135 | 34.9 | 6 |
